Quality Results for Two-Phase Fluids in Flownex

Updated

This article provides more information regarding the different quality results calculated for two-phase fluids in Flownex® for different regions.

QUALITY RESULTS FOR DIFFERENT REGIONS FOR A TWO-PHASE FLUID

Generally, the quality (x) of a two-phase fluid is a value of 0 for a saturated liquid, a value of 1 for a saturated vapour and a value between 0 and 1 when the fluid is in the two-phase region. Flownex® also provides specific quality results for the subcooled, superheated, supercritical and gas-only regions. These regions are shown in Figure 1, and the related quality results will be described in more detail below.

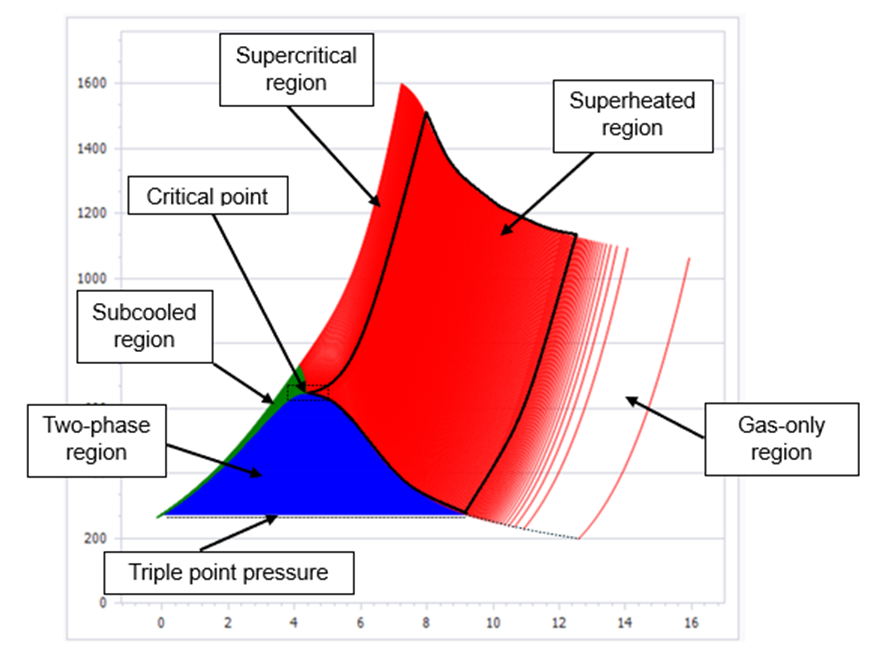

Figure 1: Different Regions for a Two-Phase Fluid.



QUALITY RESULTS FOR SUBCOOLED AND SUPERHEATED TWO-PHASE FLUIDS IN FLOWNEX®

Quality results in Flownex® will be less than 0 (x < 0) or above 1 (x > 1) if the fluid is in the subcooled or superheated region.

If the two-phase fluid is subcooled, a negative quality result (x < 0) is used to indicate to the user to which extent the two-phase fluid is subcooled.

Figure 2: Quality Result (x < 1) for Subcooled Two-Phase Fluids in Flownex®.

If the two-phase fluid is superheated, a quality result above 1 (x > 1) is used to indicate to the user to which extent the fluid is superheated.

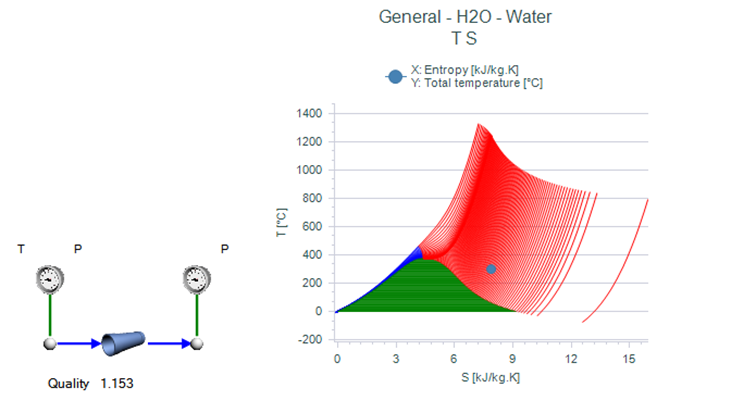

Figure 3: Quality Result (x > 1) for Superheated Two-Phase Fluids in Flownex®.



QUALITY RESULTS FOR SUPERCRITICAL TWO-PHASE FLUIDS IN FLOWNEX®

If the pressure is higher than the critical pressure of the two-phase fluid, the fluid will be considered supercritical. The quality result for a supercritical two-phase fluid in Flownex® will be given a value of 1000.

Figure 4: Quality Result (x = 1000) for Supercritical Two-Phase Fluids in Flownex®.



QUALITY RESULTS FOR GAS-ONLY TWO-PHASE FLUIDS IN FLOWNEX®

If the pressure is lower than the triple point pressure of the two-phase fluid, the fluid will only exist as a gas, and the quality result in Flownex® will be given as a value of 100.

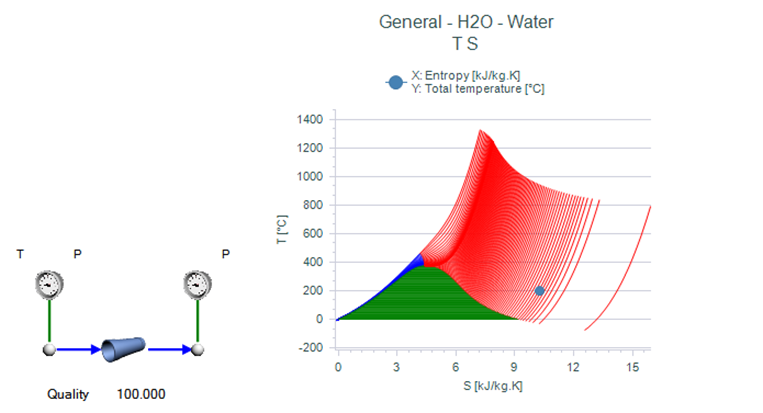

Figure 5: Quality Result (x = 100) for Gas-Only Two-Phase Fluids in Flownex®.



QUALITY RESULTS FOR LIQUID-GAS MIXTURES IN FLOWNEX®

For liquid-gas mixtures, the quality result reported by Flownex® will be equal to the mass fraction result of the gas in the liquid-gas mixture.

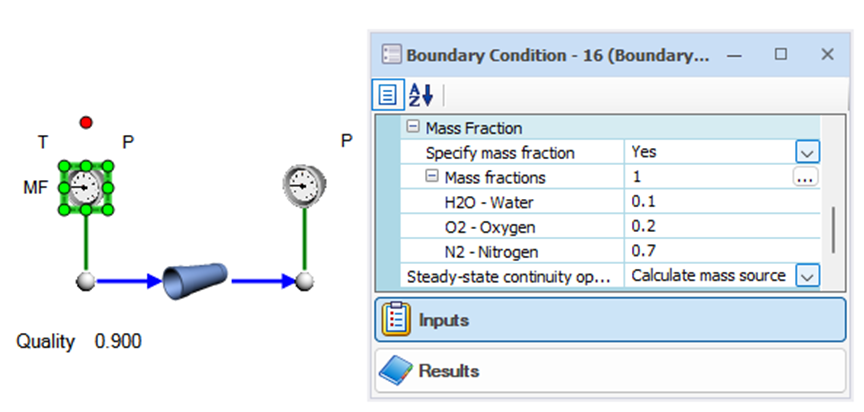

Figure 6: Quality Result (x = 0.9) for Liquid-Gas Mixture Fluids in Flownex®

QUALITY RESULTS FOR TWO-PHASE INCONDENSABLE MIXTURES IN FLOWNEX®

For two-phase with incondensable mixtures, the quality result reported by Flownex® will be equal to the quality of the two-phase fluid in the mixture.

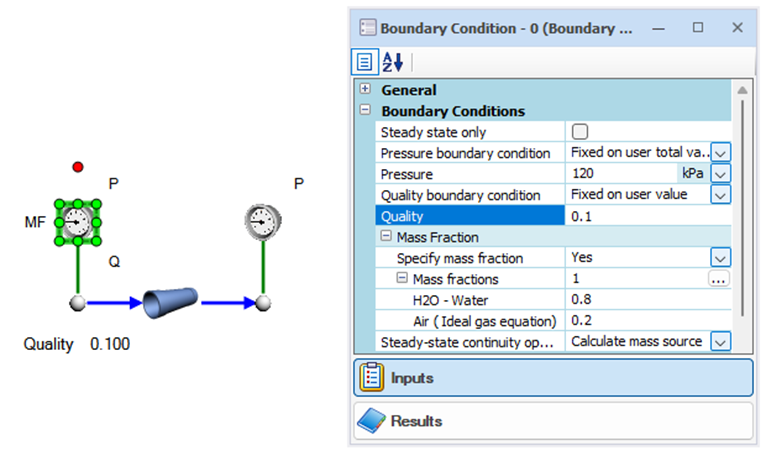

Figure 7: Quality Result (x = 0.1) for Two-Phase Incondensable Fluids in Flownex®.
